irfz44n mosfet for sale & price in Ethiopia

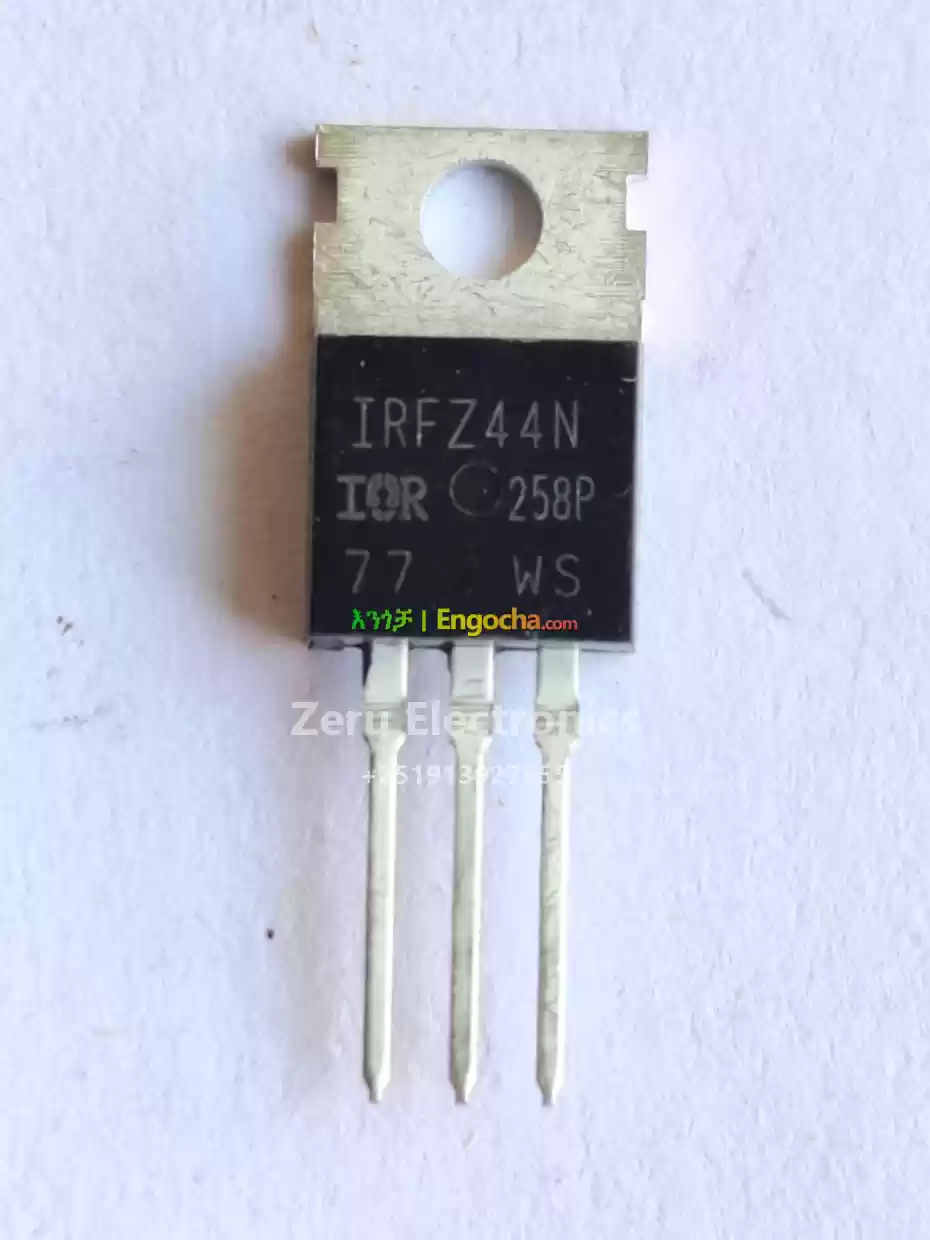

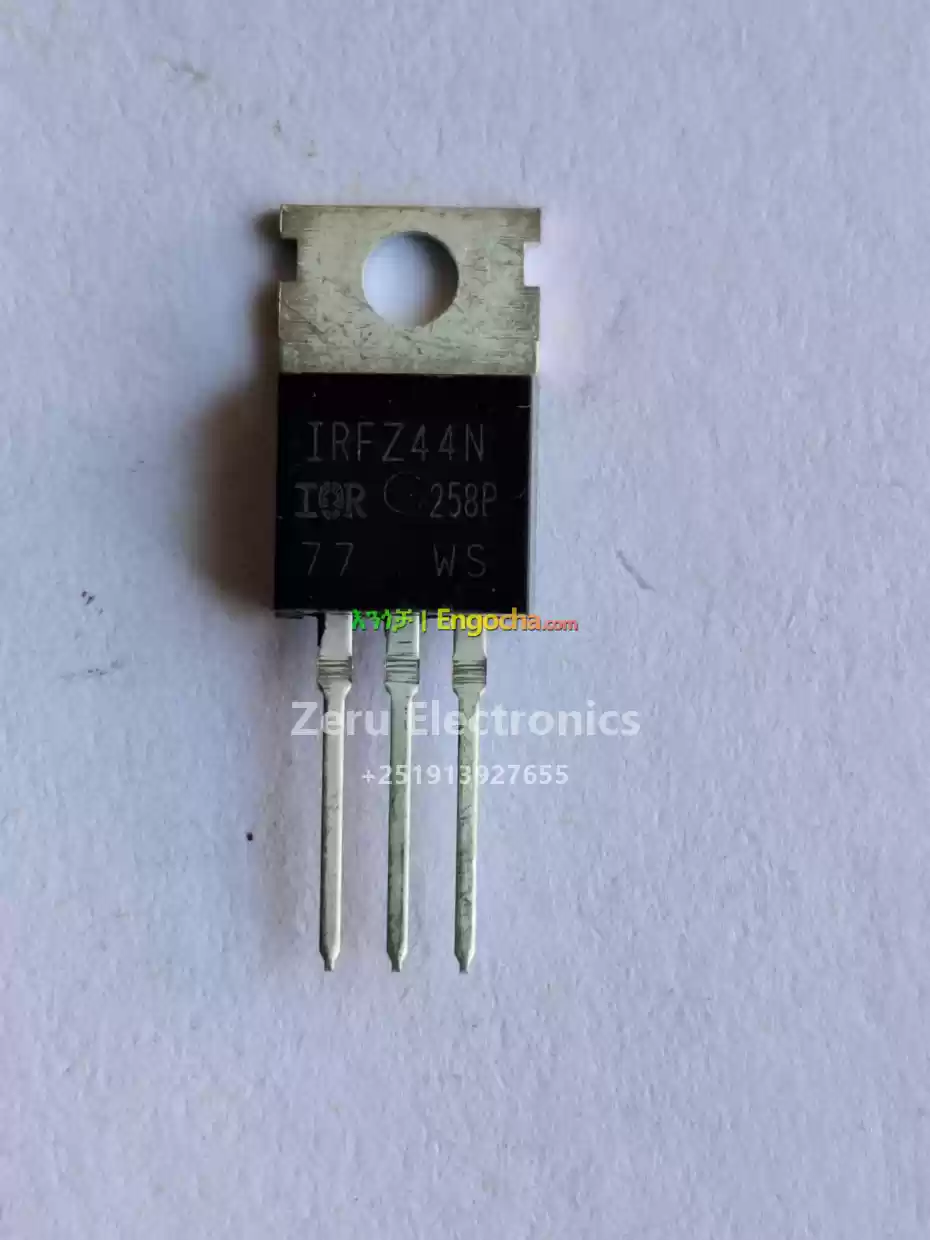

IRFZ44N mosfet

The IRFZ44N is an N-channel power MOSFET widely used in power electronics for high-speed switching applications. It features a low on-resistance (RDS(on)), can handle continuous drain currents up to 49A at 25°C, and supports a maximum drain-to-source voltage of 55V.

Type: N-channel Power MOSFET
VDS (Drain-Source Voltage): 55V
ID (Continuous Drain Current): 49A @ 25°C
RDS(on) (On-Resistance): 0.0175 - 0.022 Ω @ VGS = 10V
VGS(th) (Gate Threshold Voltage): 2.0V - 4.0V
Maximum VGS (Gate-Source Voltage): ±20V
Pulsed Drain Current: 160A
Power Dissipation: ~83-94W
Gate Drive Voltage: Requires 10V for full enhancement (not logic level)
